Supplementary Figure 7
Supplementary Figure 7: Checker-board resolution tests

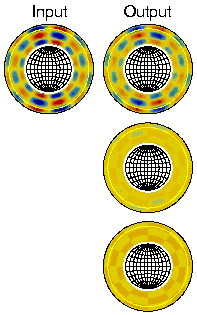

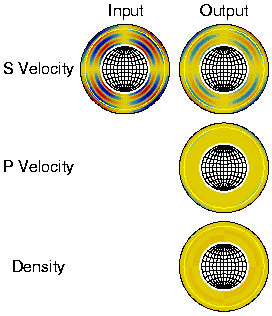

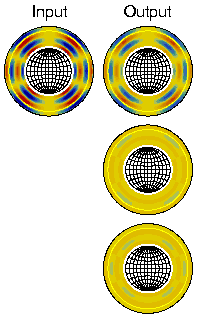

Supplementary Figure 7A
Input at a given spherical degree (l), order (m) and
radial order (k). The input model consists only of S
heterogeneity.
l=2, m=1, k=6
|
l=4, m=2, k=5
|
l=6, m=1, k=4
|

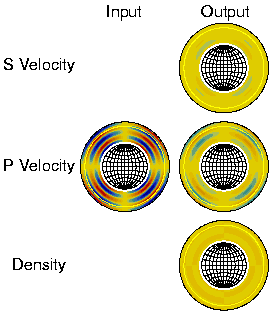

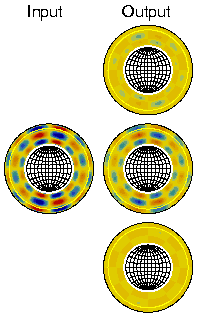

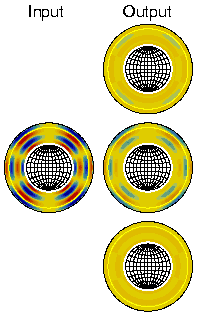

Supplementary Figure 7B
Same as in (A) but with an input model consisting only
of P velocity heterogeneity.
l=2, m=1, k=6
|
l=4, m=2, k=5
|
l=6, m=1, k=4
|

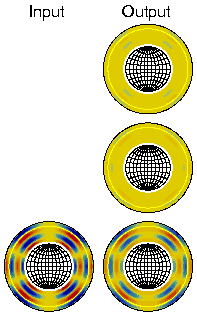

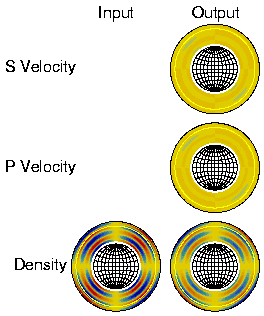

Supplementary Figure 7C
Same as in (A) but with an input model consisting only
of density heterogeneity..

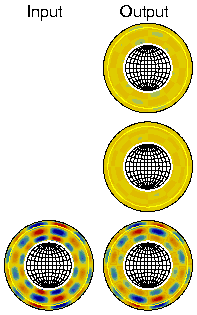

l=2, m=1, k=6
|
l=4, m=2, k=5
|
l=6, m=1, k=4
|
