HRV Seismogram Archival Project: Scanned Images and Digitized Traces (1940)

Choose month or day of interest. Dates with available links indicate image availability and those with highlighted background indicate digitized time series availability (see description in Components for the file format). Please note that we do our best in generating the digitized time series, but there may be features that are not fully captured or timing that may not be quite correct. If you are investigating a particular feature, you should check against the original image. Once the file of interest is found, please use the right button of your mouse to save the image to your computer.

January

February

March

April

May

June

July

August

September

October

November

December

Date
Dates are given as "m1/d1 - m2/d2" where m1 is the starting month, d1 is the starting day, m2 is the ending month, and d2 is the ending day. For the exact time of the start and end of the record, download the information (back side of seismogram) file that accompanies each seismogram file.
Typically, each recording covers about one day except for some single-component long-period recordings that cover two days.

Instrument
The instrument type is either "SP" for short-period recording and "LP" for long-period recording.

Components
The components are "Z" for vertical, "NS" for north-south, and "EW" for east-west. Some of the long-period recordings have two components, e.g., "Z/EW". The "Z/EW" entries are repeated in the first and third columns under "Components" and they are identical copies.
Original Images: The link to each component, e.g., Z, allows the original TIFF image of the seismic recording to be downloaded (1200 dpi in colour for front, 400 dpi in grey for back). Note that the size of the file given in brackets can be large and may take a while to download. The image of the back side of each recording (often showing more detailed information about the recording such as the start and end times) can be obtained from the "Info" link. The information files are typically 90 MB.

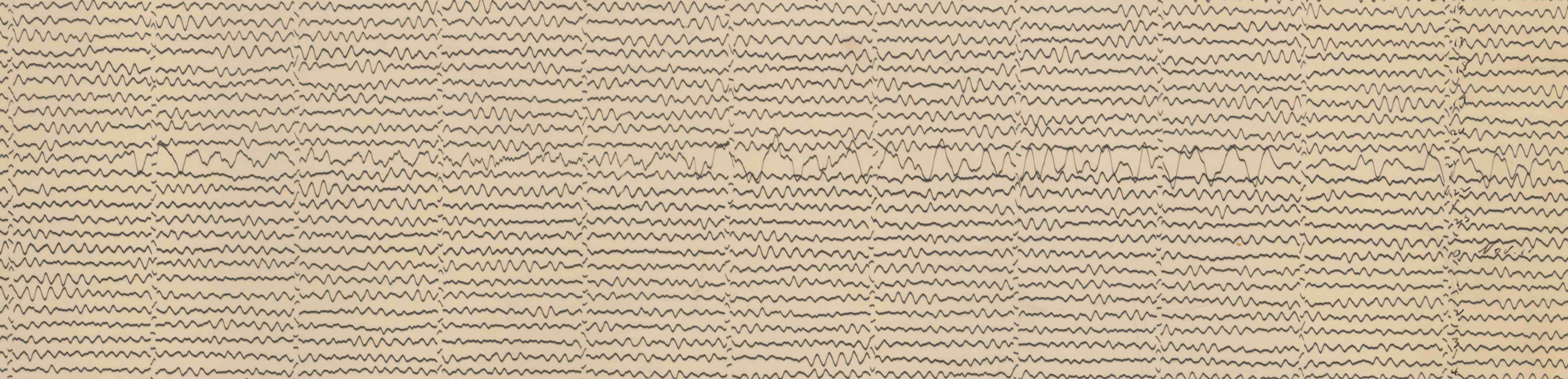

Reduced Images: The link to "JPG" provides images that have been converted to JPEG format with some flattening applied. The file sizes are much smaller, and these should be used for initial input for DigitSeis.
Digitized Time Series: The link to "SAC" can be used to download a tar file containing all SAC files associated with the specific image. There are typically multiple SAC files in the tar file, and each SAC file corresponds to a line of recording (e.g., about 1 hour for long-period recordings). They have been generated with the DigitSeis software, and some SAC files contain NaN entries, resulting in a blank screen when they are loaded and visualized in SAC software. One can work around this problem by setting the vertical axis to be between -200 and 200 (i.e., "ylim -200 200") and then adjusting the limits for the specific trace. Please note that although we do our best in capturing the signal, there is no guarantee that they are correct.
